Angled Strikes

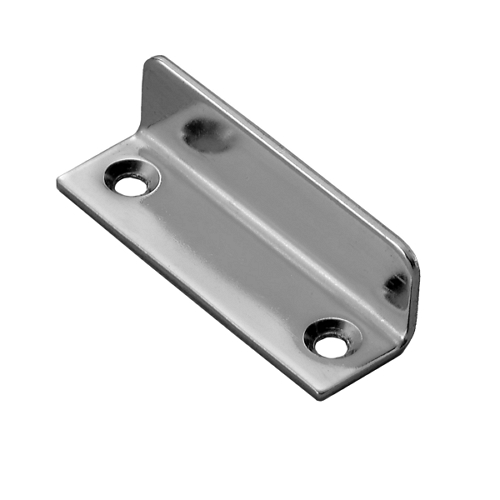

17780-11
PRODUCT INFORMATION

304 SS / Pre-Polished

Part # Description Std Pk Class*
17780-11 Angled strike for 177XX Push Button Cabinet Latches 150 A
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

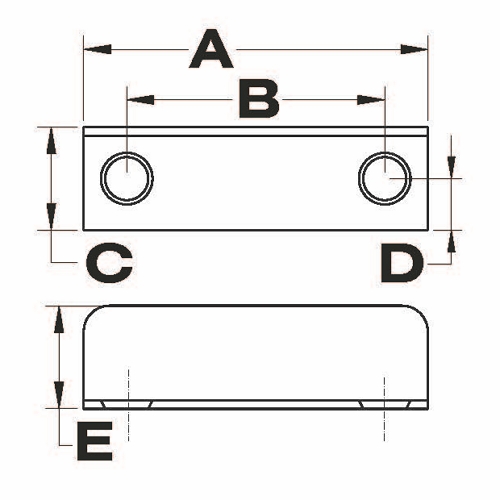

DIMENSIONS


Part # A B C D E Fastener
17780-11 1-9/16" 1-3/16" 15/32" 15/64" 15/32" #5 (not included)
