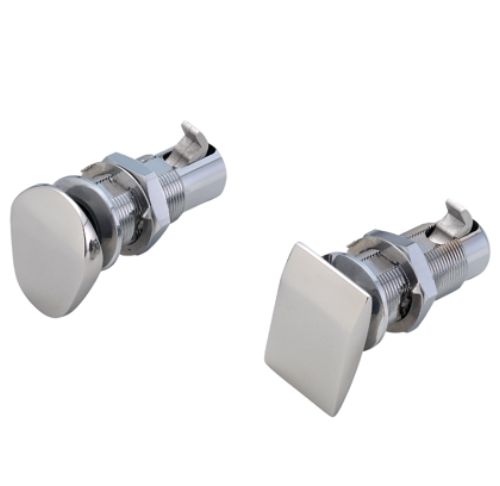

Flush Cabinet Latches, Slam Latch Plunger

16100, 16101
PRODUCT INFORMATION

Part # Handle Style Fits Door Thickness Std Pk Class*
16100 Oval 3/16" - 13/16” 50 B
16101 Rectangular 3/16" - 13/16” 50 B
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

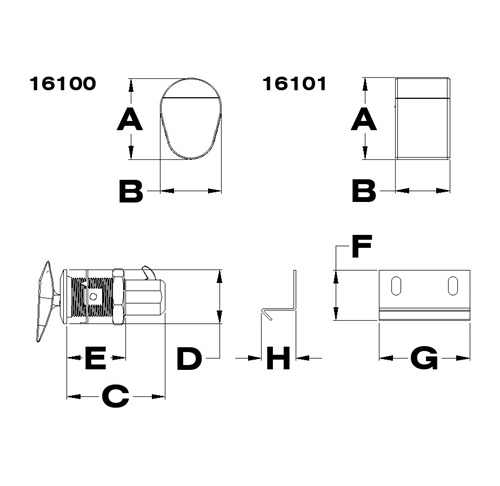

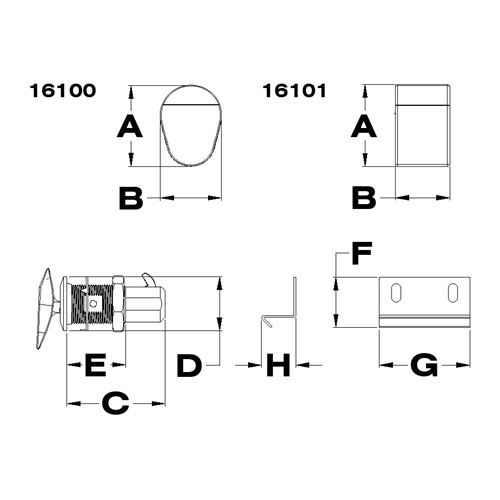

DIMENSIONS


Part # A B C D E F G H CUTOUT DIA.
16100 1-7/16" 1-1/16" 1-11/16" 15/16" 1" 7/8" 1-9/16" 5/8" 3/4"
16101 1-7/16" 15/16" 1-11/16" 15/16" 1" 7/8" 1-9/16" 5/8" 3/4"
FASTENER SIZE: M4 (NOT INCLUDED)
MATERIAL/FINISH: 316 STAINLESS STEEL / BRIGHT POLISH
